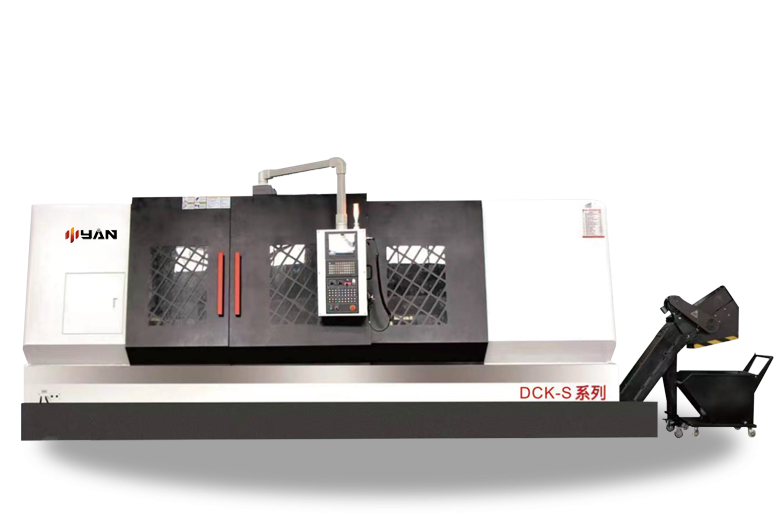

| Cy Turning And Milling Combined-Y Axis Power Turret | |

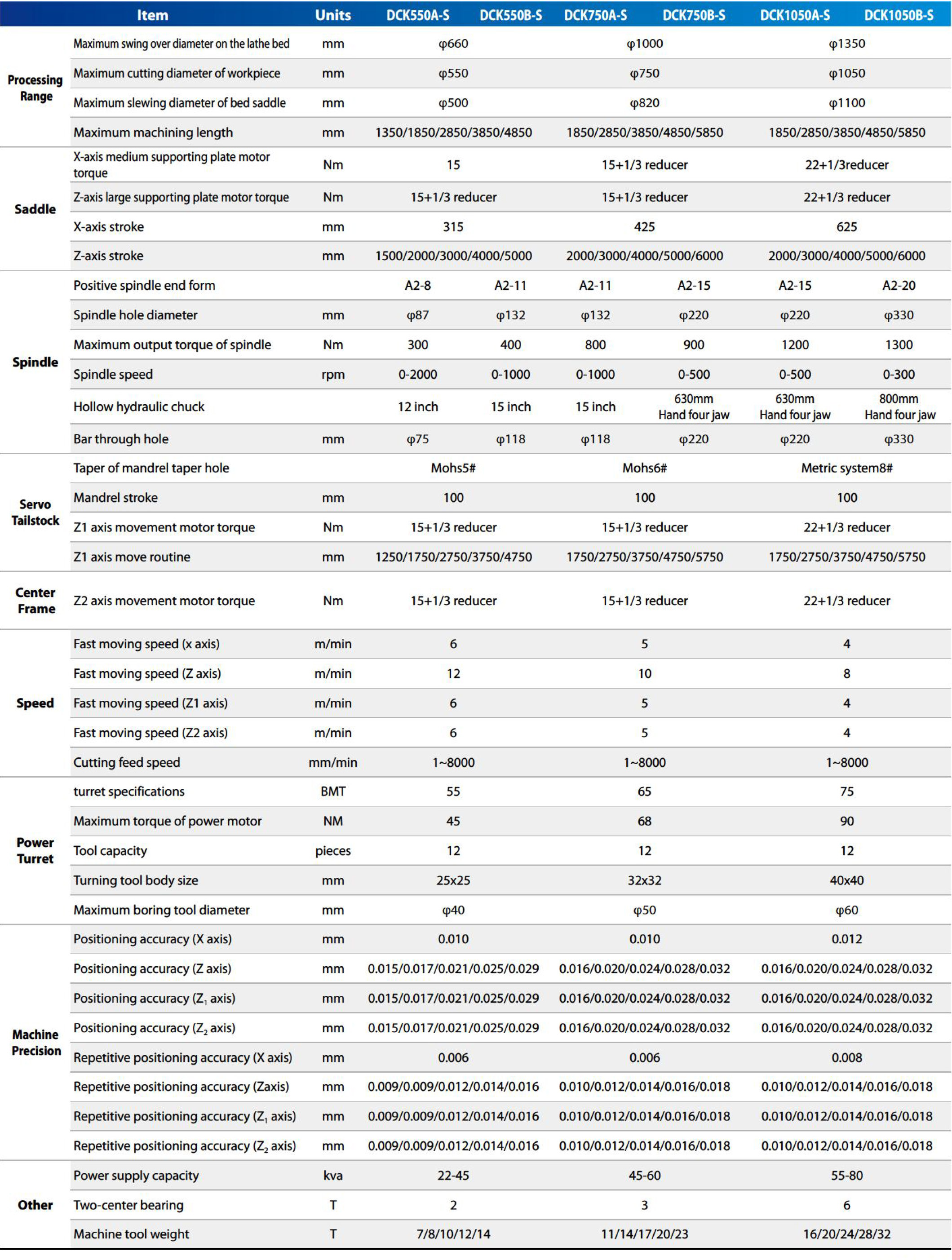

| Turret specifications: | 55BMT (DCK550)/65BMT (DCK750)/75BMT (DCK1050) |
| Maximum torque of power motor: | 45Nm (DCK550) /68Nm (DCK750) /90Nm (DCK1050) |
| Y-axis route: | ±50mm(DCK550) /±100mm (DCK750/DCK1050) |
| Tool capacity: | 12 pieces |
| Turning tool body size: | 25*25mm(DCK550) /32*32mm (DCK750) /40*40(DCK1050) |
| Maximum boring tool diameter: | φ40mm (DCK550) /φ50mm (DCK750) /φ60mm (DCK1050) |
| S Double Spindle-Servo Sub-Spindle | |
| Chuck: | 10 inch hollow hole φ52(DCK550) 12 inch hollow (DCK750) 15 inch solid (DCK1050) |
| Maximum output torque of spindle: | 105Nm (DCK550) 230Nm motor 37KW (DCK750) 600Nm (DCK1050) |
| Motor torque of Z1 axis tailstock moving: | 15Nm+1/3reducer(DCK550/DCK750) 22Nm+1/3reducer(DCK1050) |
| Movement route of Z1 axis tailstock: | 1250/1750/2750/3750/4750mm(DCK550) 1750/2750/3750/4750/5750mm(DCK750/DCK1050) |
