Vertical CNC Lathe
You are here: Home » Products » CNC MACHINE TOOL » Vertical CNC Lathe

loading

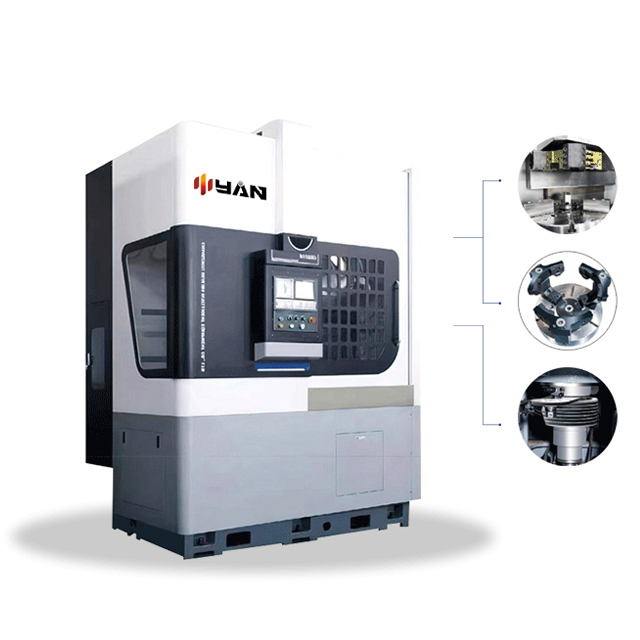

Vertical CNC Lathe

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button



Main Parts Of Machine Tool


Spindle bearing FAG/NSK
Spindle unit Independent production/Taiwan assembly (optional)
Chuck Zhongyan
Guide rail Zhongyan
Lead screw Zhongyan
Lead screw bearing NTN /NACHI
CNC systme FANUC (standard), Xindai, Guangshu, Huazhong and Siemens products optional
Spindle motor CTB
Hydraulic power station Joint venture/main component from Taiwan Province
Turret (servo) Zhongyan
Reducer Germany Hansen
Protection Domestic
Chip conveyor Domestic

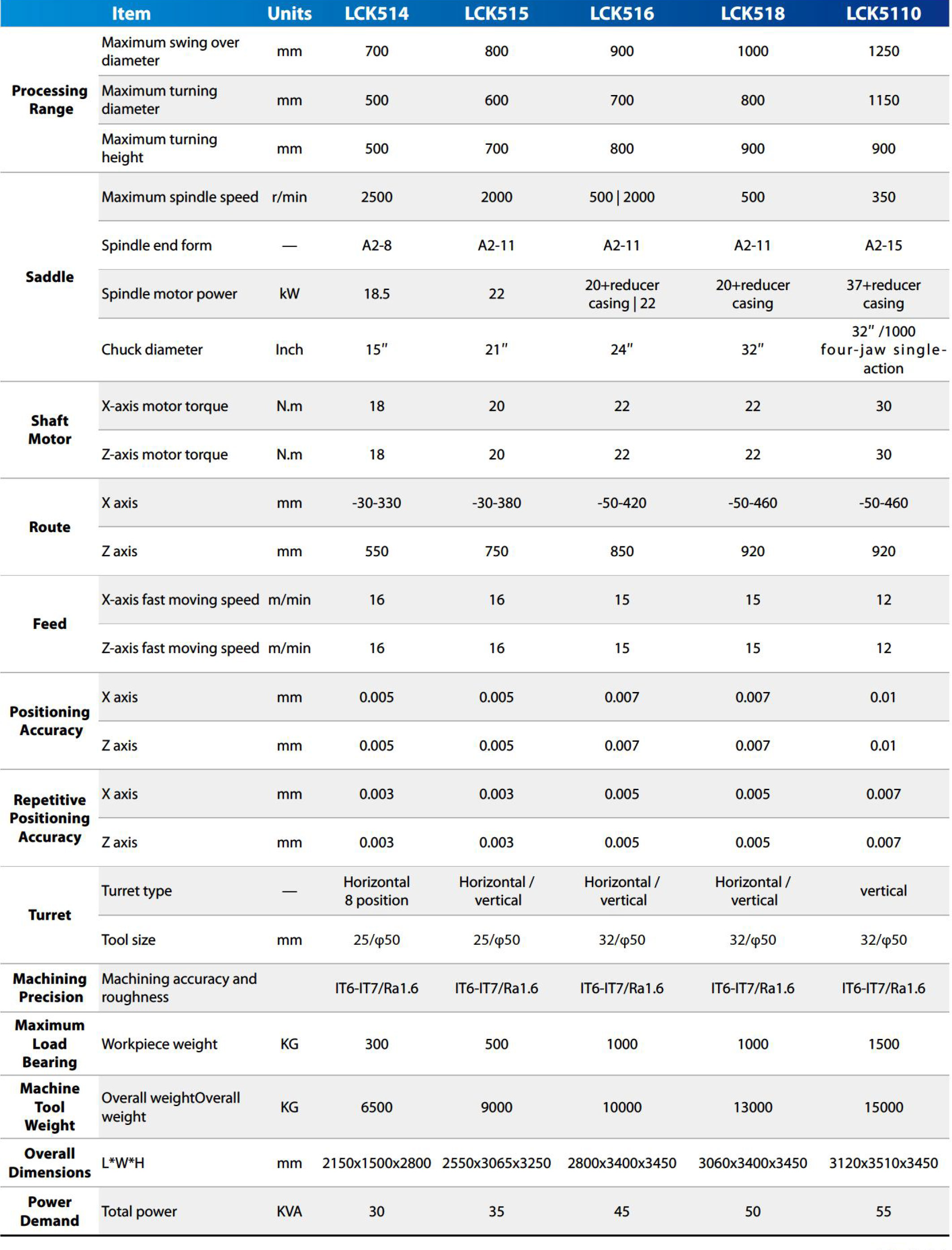

Technical Parameters


Technical Parameters
