The machine tool is suitable for machining all kinds of small and medium-sized shaft and disc parts, and can turn all kinds of threads, arcs, cones and internal and external curved surfaces of revolving bodies. It is widely used in industries such as plumbing equipment, valves, electrical appliances, instruments, automobiles, motorcycles, and bearings etc.
| • High precision Taiwan linear rail | • High speed spindle unit | • High strength cast iron |
| • Automatic centralized lubrication | • Slant bed | • Optional power turret |
High Rigidity, Low Vibration Design: Adopts a 30-degree slant bed saddle structure, with the entire machine optimized through finite element analysis and a rational arrangement of internal bed ribs.

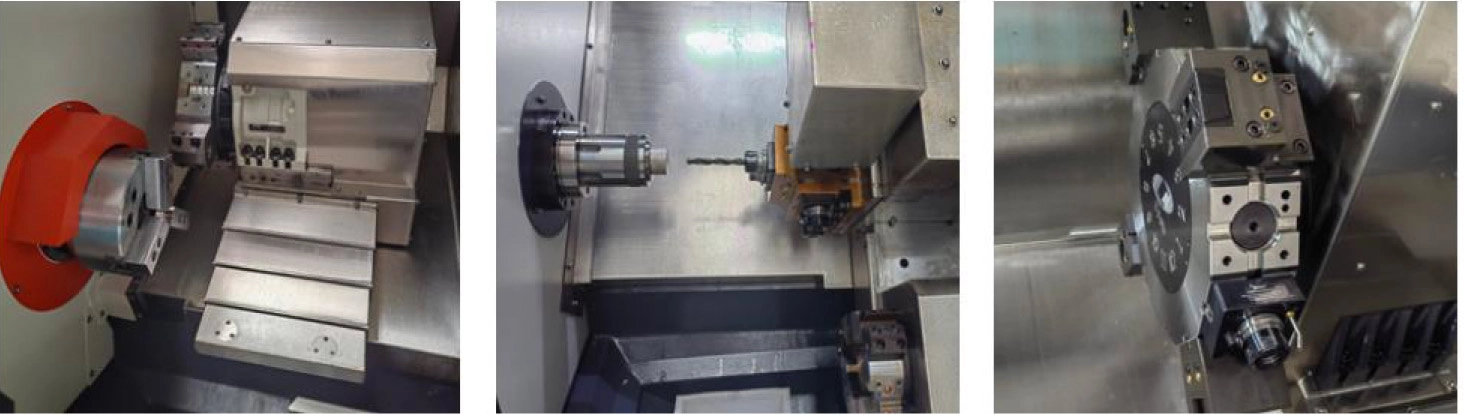

Equipped with a Taiwan servo turret, providing high positioning accuracy and rapid tool disc indexing.
Fitted with reinforced P3-grade ball screws and roller linear guides, with a six-slider configuration for the Z-axis.
Available with programmable hydraulic tailstock or programmable servo tailstock.
The machine tool is suitable for machining all kinds of small and medium-sized shaft and disc parts, and can turn all kinds of threads, arcs, cones and internal and external curved surfaces of revolving bodies. It is widely used in industries such as plumbing equipment, valves, electrical appliances, instruments, automobiles, motorcycles, and bearings etc.
| • High precision Taiwan linear rail | • High speed spindle unit | • High strength cast iron |
| • Automatic centralized lubrication | • Slant bed | • Optional power turret |
High Rigidity, Low Vibration Design: Adopts a 30-degree slant bed saddle structure, with the entire machine optimized through finite element analysis and a rational arrangement of internal bed ribs.
Equipped with a Taiwan servo turret, providing high positioning accuracy and rapid tool disc indexing.
Fitted with reinforced P3-grade ball screws and roller linear guides, with a six-slider configuration for the Z-axis.
Available with programmable hydraulic tailstock or programmable servo tailstock.
