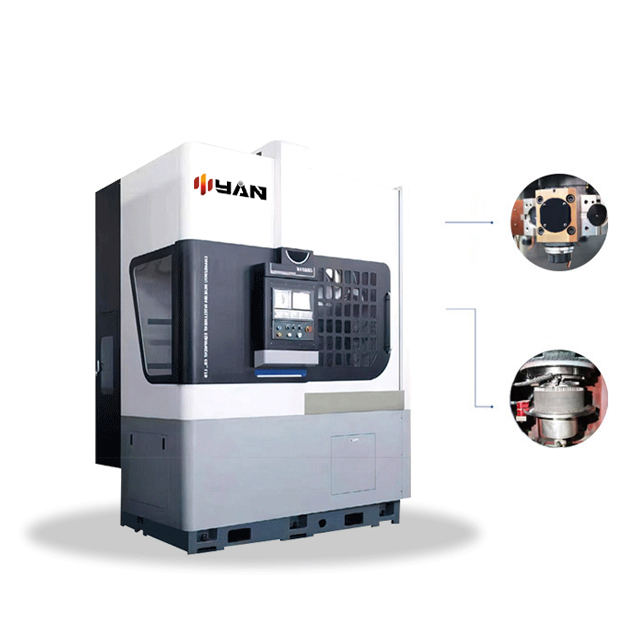

Vertical Turning And Milling Combined Machine Tool

One-time clamping, idle turning, iron cutting, drilling and tapping processes can reduce the number of clamping, improve the processing efficiency, and improve the geometric tolerance accuracy of parts processing.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button



Main Parts Of Machine Tool


Spindle Electric spindle (including circular grating and hydraulic clamping)
Hydraulic power station Joint venture/main components from Taiwan
Chuck Zhongyan
Lead screw bearing NTN/NSK
CNC systme Xindai (standard), Huazhong, FANUC and Siemens products optional
Power turret Taiwan Chengxin
Lead screw Zhongyan
Guide rail Zhongyan


One-time clamping, idle turning, iron cutting, drilling and tapping processes can reduce the number of clamping, improve the processing efficiency, and improve the geometric tolerance accuracy of parts processing.

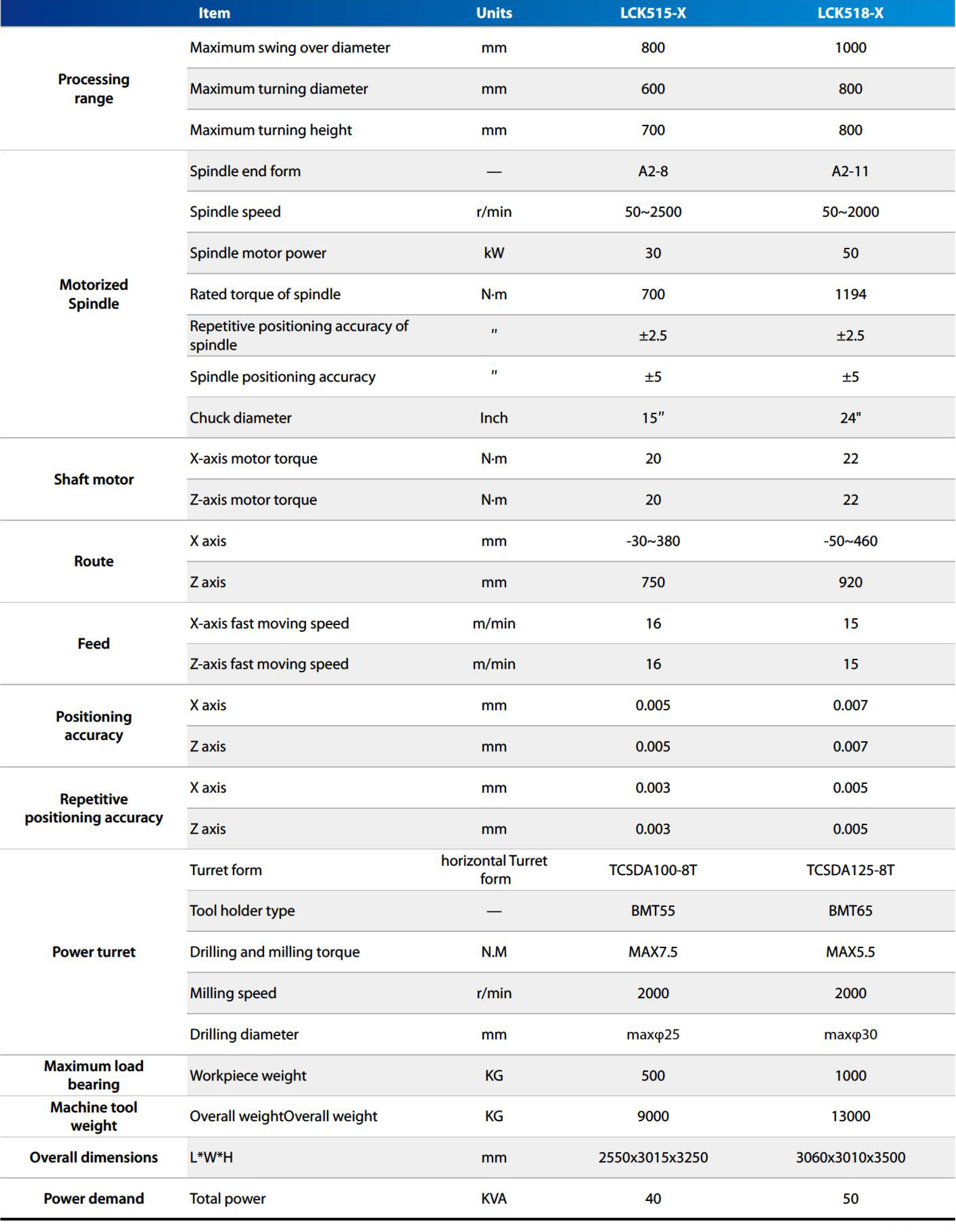

Technical Parameters


Technical-Parameters
